Product Description
- Extraction and insertion of king pins on the vehicle
- Extraction of wheel hubs and brake drums
- Various pullers for ball joints and steering arm included in the set
- Sleeve sets for changing slotted bushings included in the set
- Wooden board including collecting groove
- 1 drawer for operating tools (753 x 398 x 75 mm)
- 4 drawers for specialty tools (753 x 398 x 206.5 mm)
Technical Data for V7084
- Dimension:
- 907 x 481 x 990 mm
- Worktop:
- Wood multiplex, with surrounding grooved rim for collecting small parts
- Number of tools:
- 100
- Colour:
- RAL 9005 / ähnlich RAL 7012
- Loading capacity (static):
- 1000 kg
- Weight of trolley:
- 90 kg
- Number of fixed castors:
- 2
- Number of swivel castors:
- 2
- Number of castors with brake:
- 2
- Insert measurement / drawer size:
- XL (750 x 393 mm)
- Drawers total:
- 4
- Number of flat drawers:
- 1
- Number of high drawers:
- 3
- Drawer sliding-out %:
- 100%
- Drawer dimensions (flat):
- 753 x 398 x 75 mm
- Drawer dimensions (high):
- 753 x 398 x 206 mm
- Loading capacity of flat drawer:
- 40 kg
- Loading capacity per drawer:
- 40 kg
- Drawer locking:
- Mutual drawer locking for a minimum tilting risk
- Drawer lock:
- Central locking with cylinder lock
Scope of Delivery
Accessories
Spare Parts
V1903

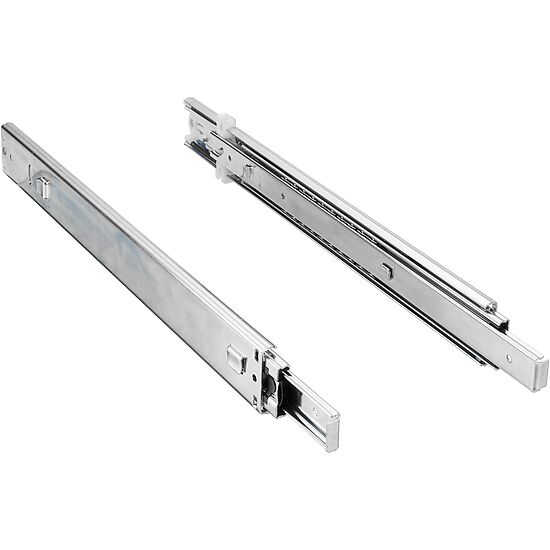

Guiding rails (pair) ∙ for Series L ∙ Series XL
2-pieces
V4814-1

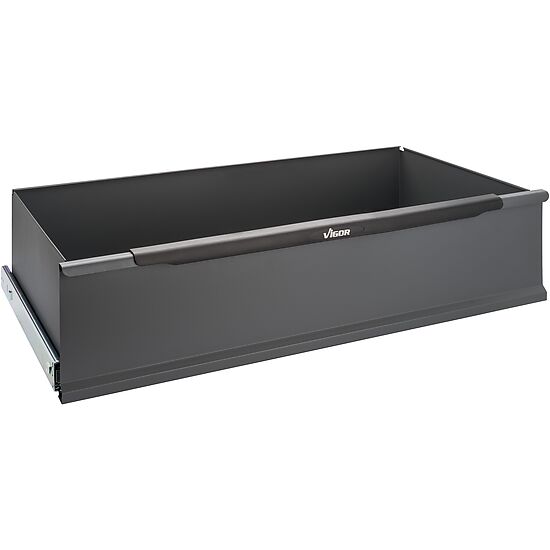

Drawer ∙ high ∙ for series XL Special
L x W x H: 741 x 397 x 206 mm
V4814-2

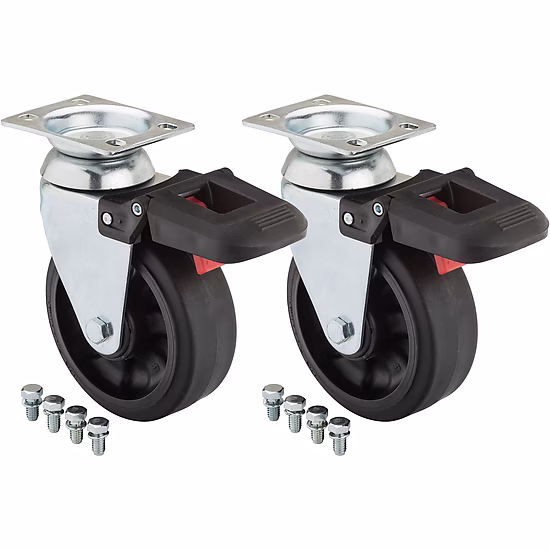

Swivel castor (pair) ∙ for tool trolleys series XL ∙ series XL Special and work benches
2-pieces
V4814-3

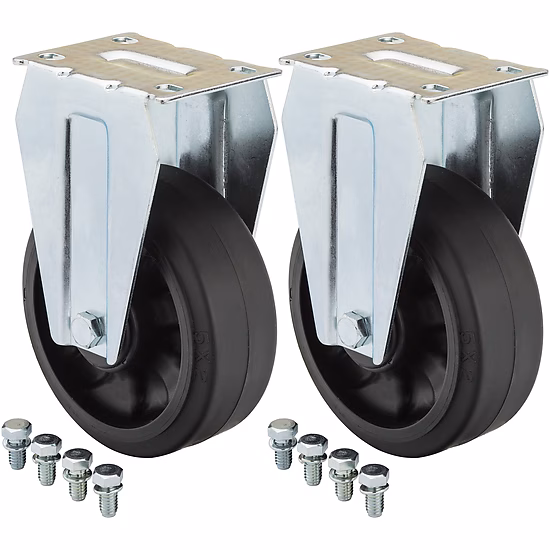

Fixed castor (pair) ∙ for tool trolleys series XL ∙ series XL Special and work benches
2-pieces
