V4477
EAN: 4047728044776
Size 32 mm
1⁄2″
Outside 12-point
Product Description
- For e.g.:
- VW Touareg model year 2003 →
- AUDI A4 model year 2001 → ∙ A6 model year 2005 → ∙ A8 model year 2003 → ∙ Q7 model year 2007 →
- Other models

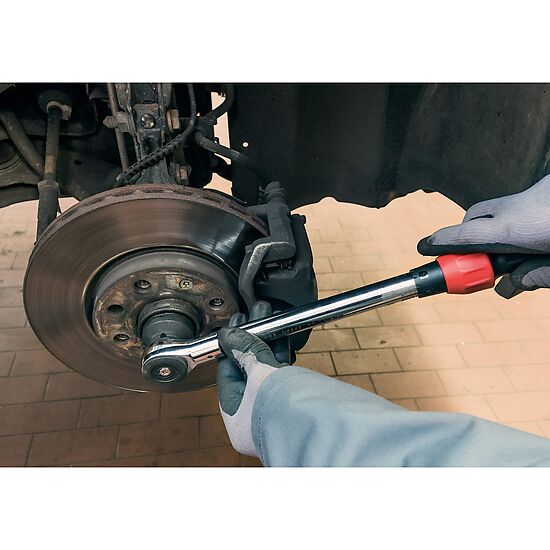

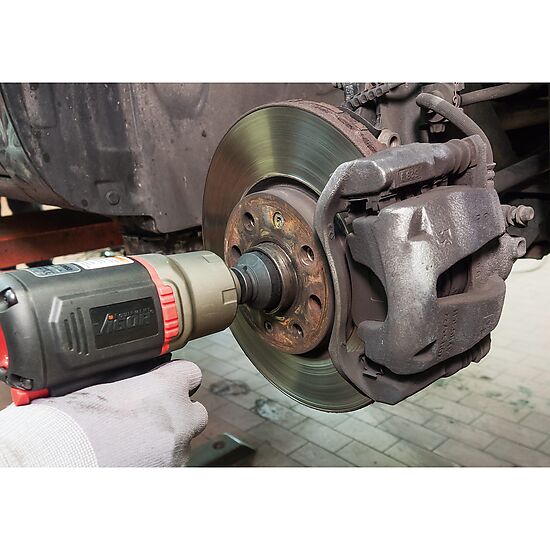

- Extra thin-walled socket for cardan shaft screw connections in the wheel hub

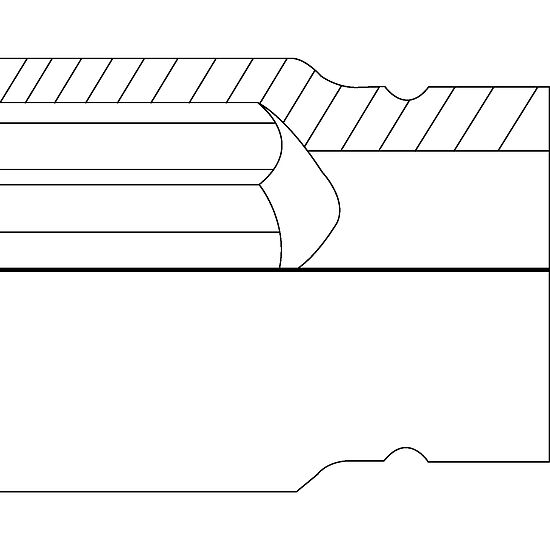

- Borehole for locking pin or safety spring and groove for o-ring
- Adjusted to given spaces in the wheel hub
Technical Data for V4477
- Drive:
- 1⁄2″
- Output:
- Outside 12-point
- Wrench size:
- 32 mm
- Gesamtlänge:
- 50 mm
- Diameter d1 (output side):
- 44.4 mm
- Diameter d2 (drive side):
- 30 mm
- Manual/impact operation:
- For impact operation
